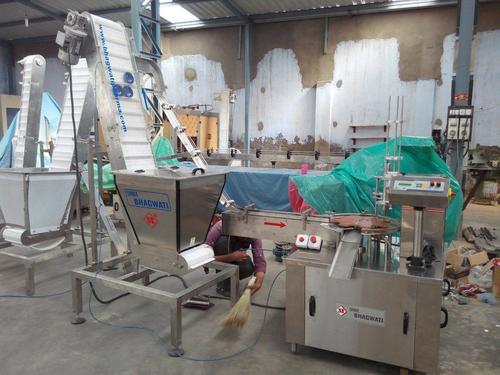

Wed inserting Machine, Cap lining machine

Wed inserting Machine, Cap lining machine
Wed inserting Machine, Cap lining machine
Product Code : 199
Brand Name : MULTIPACK
Product Description

Wed inserting Machine, Cap lining machine:

 Wed inserting Machine, Cap Wed inserting Machine

The Automatic Wed inserting Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine.



Operation:

The feed caps in vibrating bowl moving on chute are fed into star wheel, operating on Geneva mechanism.  move on third part of induction where one pneumatic actuator put one wad into cap and at last part on induction wad will press by one mechanical operated rod.



Technical Specifications:

Model

MMCWI - 60 / 150

Output/Hour

1000 to 9000.

Direction of Movement

Left to Right.

Electrical Specification

Main Motor

2 HP max

Cap Feeding Bowl

20 MPR

Working Height

700 to 900mm

Machine DimensionsApprox

1250mm W x 1600mm L x 1500mm H

Net Weight

800kg

Change parts required

(A) Cap: Vibrating Bowl, Chute, Star Wheel.

(B) Wad: Magazine, Pusher, Star wheel, Inserting Plate.
